Bosch Rexorth Valve amplifier VT5035-1X/SO43A-1830 R978034109 Rexroth

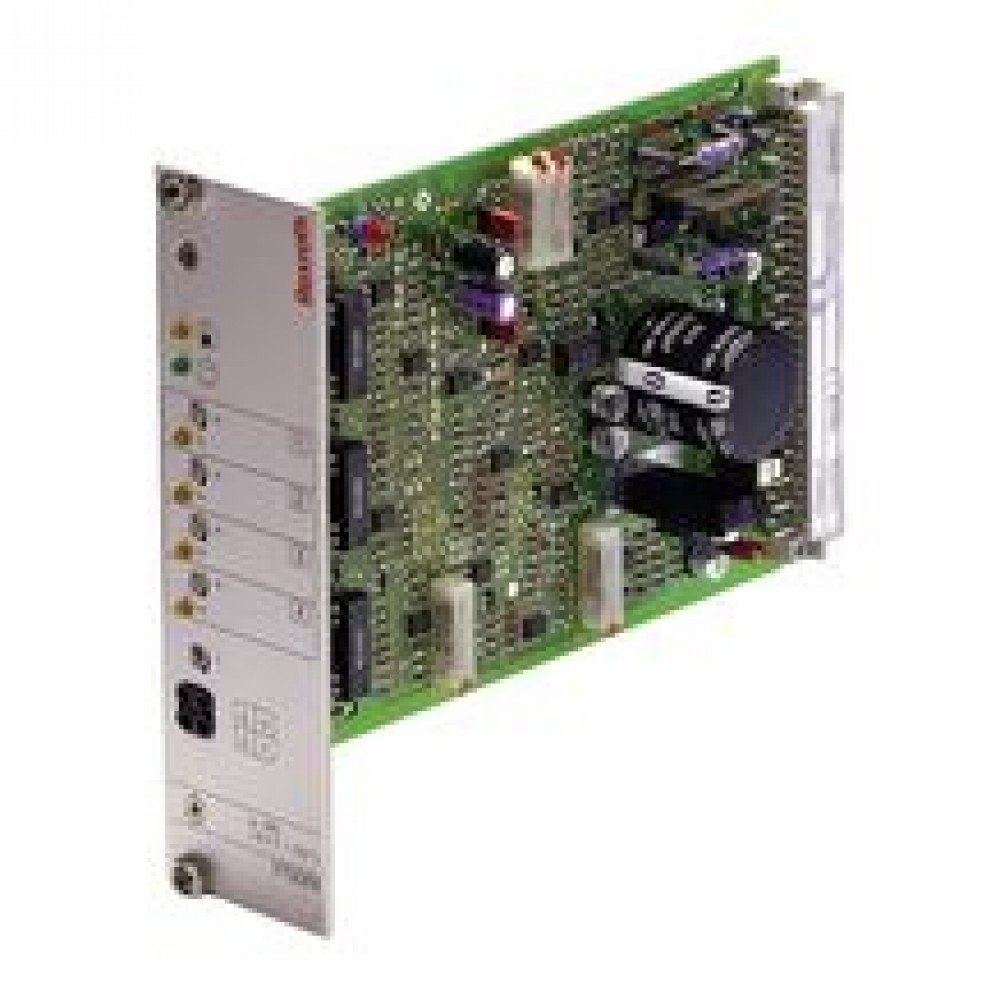

Bosch Rexorth Valve amplifier VT5035-1X/SO43A-1830 R978034109 RexrothThe printed circuit board is used for the electric flow control of an AV4VSO and AV4SG with EO1 and EO2 adjustment or an AVCSG with EO2 adjustment.The amplifier controls the proportional valve of the swivel angle actuating cylinder and controls its position analogously to the specified command value. The swivel angle position is recorded as actual value.Using the command value inputs 1 to 4, command values can be retrieved [1] by actuating the related relays (K1 to K4). The command value voltage is either specified directly, by the regulated voltages ±9 V of the internal power supply unit [10] or via an external command value potentiometer. For these inputs, ±9 V ≙ 100 %. Reference potential for command values 1 to 4 is M0. If these four command value inputs are directly connected to the regulated voltages ±9 V, four different command values can be set at the “w1” to “w4” potentiometers. When external command value potentiometers are used at these inputs, the internal potentiometers function as attenuators or limiters unless they have been set to the maximum.The LEDs “H1” to “H4” indicate which command value is just being called. If more than one command value is called at a time, the input with the highest number will take priority.Example: If command value 1 and command value 3 are activated simultaneously, command value 3 will take effect.Another output of the card supplies a supply voltage for the command value call-ups which can be switched from +9 V to –9 V by means of the relay K6).All relays on the card are switched with 24 VDC (smoothened).The command value input 5 is a differential input (0 to ±10 V). If the command value is specified by external electronics with a different reference potential, this input has to be used. When disconnecting or connecting the command value voltage, it has to be ensured that both signal lines are in each case separated from or connected with the input.Before they are forwarded, all command values will be added up according to their absolute value and their sign [3].The down-stream ramp generator [4] generates a ramp-shaped output signal from a given step-shaped input signal. The time constant of the output signal can be adjusted using the “t” potentiometer. The specified ramp time refers to a command value step of 100 % and may be approx. 1 s or 5  s depending on the jumper setting (J5, J6). If a command value step of less than 100 % is switched to the ramp generator input, the ramp time will be correspondingly shorter.Notice:When using an external time potentiometer, the internal potentiometer for the ramp time must be set to maximum. The maximum ramp time is reduced as the resistance value of the external potentiometer is switched in parallel to that of the internal one (ca. 500 kΩ).By switching the relay K5 or by an external jumper, the ramp time is set to its minimum value (ca. 30 ms).The output sign
