Bosch Rexorth Directional valve 4WRSE 10 E1-25-3X/G24K0/A1V R900958729 Rexroth

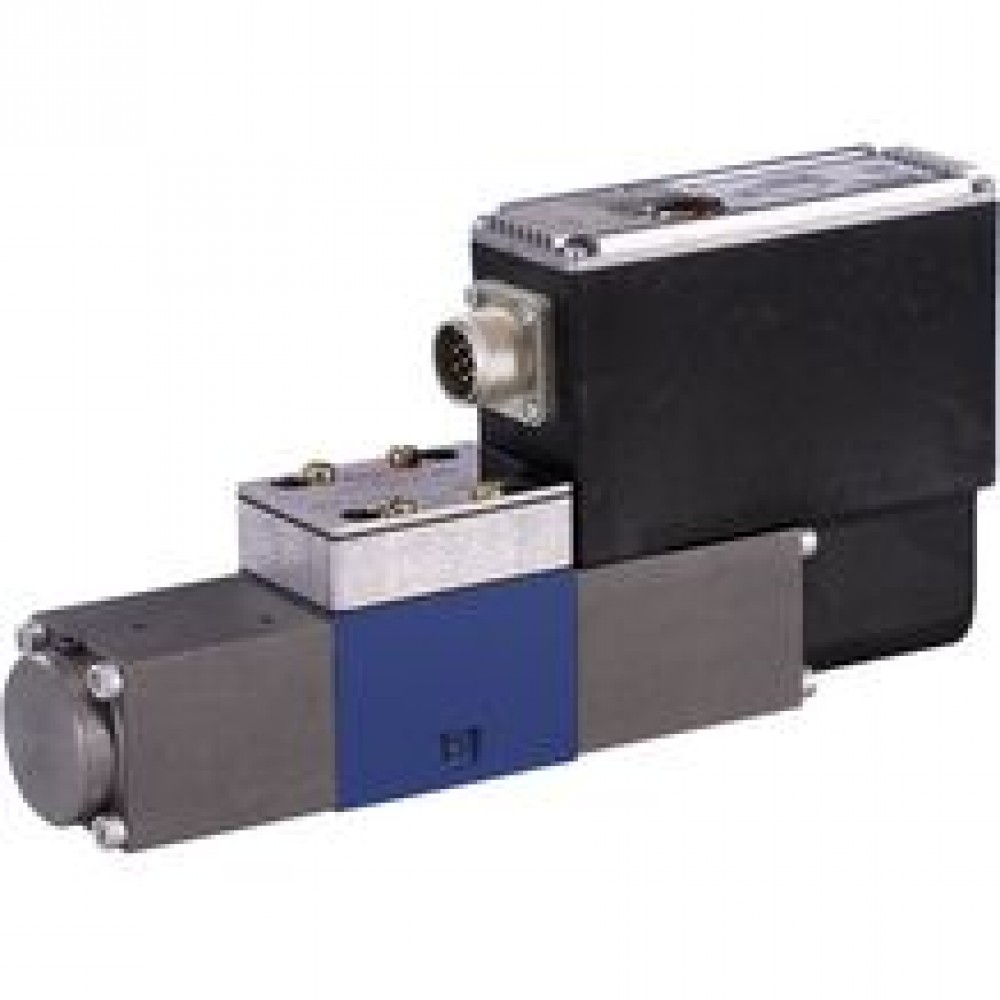

Bosch Rexorth Directional valve 4WRSE 10 E1-25-3X/G24K0/A1V R900958729 RexrothThe 4/3 directional control valves are designed as direct operated devices in plate design. Operation is effected by means of control solenoids. The solenoids are controlled via integrated control electronics (OBE).Set-up:The valve basically consists of:Housing (1) with connection surfaceControl spool (2) with compression springs (3 and 4)Solenoids (5 and 6)Position transducer (7)integrated control electronics (OBE) (8)Zero point adjustment accessible via Pg9 cover (9)Functional description:With de-energized solenoids (5 and 6), central position of the control spool (2) by compression springs (3 and 4) Direct operation of the control spool (2) by energization of a control solenoide.g. control solenoid “b” (6)Displacement of the control spool (2) to the left, proportionally to the electric input signal Connection from P → A and B → T via orifice-type cross-sections with linear flow characteristicsSwitching off the solenoid (6) The compression spring (3) brings the control spool (2) back into the central positionIn the de-energized condition, the control spool (2) is held in a mechanical central position by the return springs of the solenoids. With control spool symbols “V” and “Q”, this position does not correspond to the hydraulic central position! When the electric valve control loop is closed, the control spool (2) is positioned in the hydraulic central position.4WRSE 10Size 6, 10Component series 3XMaximum operating pressure 315 barMaximum flow 180 l/minNominal flow 4 … 75 l/min
